Networking

Xpra can connect through local sockets or a range of network transports. Start with SSH for a straightforward encrypted connection, or choose another transport when you need browser access, lower latency, or compatibility with other remote-desktop clients.

Choose a connection type

The bind option creates a server endpoint. Clients connect using the matching URL scheme, such as ssh://, ssl://, or quic://.

SSH

Use --bind-ssh on any platform. SSH provides host verification, authentication, and encryption, and is the usual choice for connecting across a network.

Local Unix domain sockets can also be reached through an existing SSH server.

TLS, QUIC, and secure WebSocket

These encrypted transports are available on all platforms:

  • --bind-ssl creates a TLS endpoint
  • --bind-quic creates a QUIC endpoint
  • --bind-wss creates a secure WebSocket endpoint

QUIC should offer the lowest latency and handles packet loss well, though it may need some tuning.

TCP and WebSocket

Use --bind-tcp or --bind-ws on any platform. Plain TCP and WebSocket connections are not encrypted; protect them with AES, place them behind a secure proxy, or use an encrypted transport instead.

A TCP endpoint can also serve the HTML5 client and automatically recognize WebSocket connections.

Local and virtual-machine connections

  • --bind creates Unix domain sockets on POSIX systems
  • --bind creates a named pipe on Windows
  • --bind-vsock connects Linux hosts and guest virtual machines; see #983

The default --bind=auto also creates abstract sockets on supported systems. Use --bind=noabstract to disable them.

RFB / VNC and RDP compatibility

--bind-rfb allows VNC clients to connect to desktop, monitor, and shadow servers. Xpra can also connect to a VNC server using a vnc:// URL.

--bind-rdp is available for the same server types, but only the connection handshake is implemented so far; follow #4476 for progress.

How endpoints behave

One listening port can support several clients and protocols.

Automatic protocol upgrades

A TCP socket can recognize and upgrade WebSocket, secure WebSocket, TLS, SSH, RFB, and RDP connections. Including plain TCP, one port can therefore support seven protocols automatically.

This makes it possible to serve native Xpra clients, compatible remote-desktop clients, and the HTML5 client from the same address. See the protocol reference for details of Xpra’s application-level messages.

Discovery and security

Network-accessible sockets are normally published through multicast DNS. This excludes vsock and Windows named pipes; POSIX Unix domain sockets are advertised as SSH connections when a local SSH server is available.

Before exposing an endpoint, configure authentication, encryption, and review the security guidance.

Connection examples

The examples below expose port 10000. Check the firewall and security policy on the server before making a port reachable from other machines.

TCP upgraded to WebSocket

Start a seamless session with a TCP listener:

xpra seamless --start=xterm --bind-tcp=0.0.0.0:10000

Connect using WebSocket:

xpra attach ws://localhost:10000/

Open the same address in a browser to use the HTML5 client:

xdg-open http://localhost:10000/

SSH with a password file

Create the password file and start an SSH listener with file authentication:

echo -n thepassword > password.txt
xpra seamless --start=xterm \
    --bind-ssh=0.0.0.0:10000,auth=file(filename=password.txt)

Then attach to it:

xpra attach ssh://localhost:10000/

The client prompts for the password stored in password.txt, not the regular shell account password.

Network performance

Xpra adapts picture delivery to the connection, but network configuration and queueing still have a large effect on responsiveness.

Bandwidth adaptation

Xpra tries to detect the network adapter and connection characteristics, and adapts when capacity changes. If detection is inaccurate, disable bandwidth-detection and set an explicit bandwidth-limit.

Latency and queueing

Bufferbloat can cause severe performance degradation because Xpra is sensitive to jitter and latency. The Bufferbloat project explains practical ways to reduce it.

For background, see You Don’t Know Jack About Bandwidth, A little bump in the wire that makes your Internet faster, the bufferbloat FAQ, and Queueing in the Linux Network Stack.

Monitor a live session

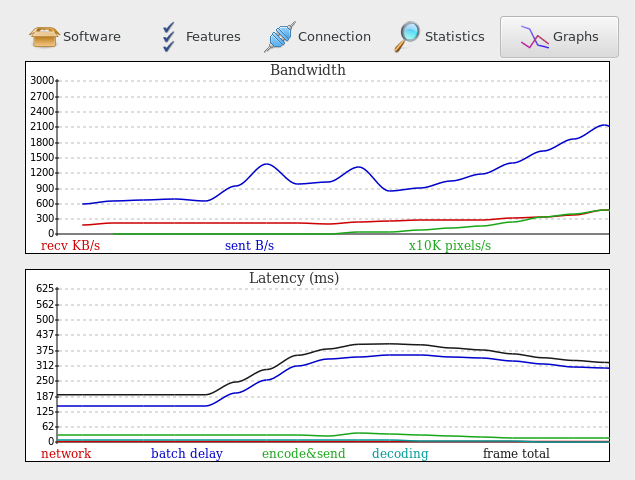

Session Info graphs showing bandwidth and picture latency

The Graphs tab in the Session Info dialog shows bandwidth use and picture latency. More network measurements are available elsewhere in that dialog and from the xpra info command.

Diagnose network problems

Measure the connection as the application experiences it, then compare that with simpler network tests to locate latency outside Xpra.

Establish a direct baseline

Tunnels, VPNs, proxies, and firewalls can add latency or alter traffic. Test a direct connection first, then reintroduce each layer. Prefer plain TCP while diagnosing because comparing it with WebSocket, TLS, or QUIC helps isolate the transport layer.

Check the client output and server log for warnings before focusing on the network. GPU contention and encoding or decoding errors can look like network problems.

Collect application-level samples

xpra info | grep latency

These samples include the operating-system and library layers between the wire and Xpra. Compare them with ping, tcpping, or nmap: a large difference can reveal system load or memory-bandwidth bottlenecks that raw network tests do not show.

With no address, xpra info queries a server. It can also query a client process directly, where additional client-side measurements are available.

Interpret the measurements

  • connection.client.ping_latency — client-to-server application ping latency
  • connection.server.ping_latency — server-to-client application ping latency
  • damage.frame-total-latency — average time until an update reaches the client backbuffer, excluding vblank and compositor buffering
  • damage.client-latency — average frame time without decoding or display
  • damage.in_latency — average delay before a screen update is processed

Suffixes describe the sample: avg, cur, min, max, and 90p for the 90th percentile.

Common warning signs

  • Latency swings are often more disruptive than stable high latency because adaptation takes time.
  • Packet loss, particularly over Wi-Fi, can strongly affect every transport except QUIC and is not directly exposed to the application.
  • Screen-update storms, high refresh rates, or unused alpha channels can make particular applications require more tuning.
  • Much higher server-side ping_latency often indicates an overloaded server.

Measurement caveats

Querying a process with xpra info creates some extra resource contention and can affect the application or the measurements. Capture data while the problem is happening—this may require automation or a second person—and focus on combinations and changes rather than treating one value as conclusive.
