xpra

Dependencies

Most of these dependencies should be installed automatically when you install official packages.
Unless otherwise stated, the dependencies are all optional.

The tools required for building all of these projects are not listed here.
Typically, you will need: gcc or clang, gnu-make, libiconv, gettext, cmake, autoconf, automake, pkg-config or pkgconf, bison, flex, intltool, etc For building xpra itself and some of the python modules, you will also need Cython

Core Dependencies

Those are required by almost every component.

Project Source Download Link Purpose Client or Server Notes
glib https://ftp.gnome.org/pub/gnome/sources/glib/ low-level library both Required
gtk http://ftp.gnome.org/pub/gnome/sources/gtk+/ UI Toolkit both Required (*)
PyGObject https://pypi.org/project/PyGObject/#files Bindings for GObject based libraries such as GTK and GStreamer both Required (*)

(*) needed for running any kind of server, or GUI clients. It is not required for running text-only clients like xpra top or xpra info.

And some of their transitive dependencies:

Project Source Download Link Purpose
gobject-introspection https://gitlab.gnome.org/GNOME/gobject-introspection/-/releases Provides bindings for Gtk, GLib, etc
librsvg https://gitlab.gnome.org/GNOME/librsvg/-/releases svg parsing
freetype https://freetype.org/download.html font parsing
harfbuzzz https://github.com/harfbuzz/harfbuzz/releases text shaping engine
icu https://github.com/unicode-org/icu/releases unicode library
pixman https://www.cairographics.org/releases/ pixel manipulation
fribidi https://github.com/fribidi/fribidi/releases unicode bidirectional library
pango https://download.gnome.org/sources/pango/ text layout and rendering
gdk-pixbuf https://gitlab.gnome.org/GNOME/gdk-pixbuf/-/releases image library
libepoxy https://github.com/anholt/libepoxy/releases OpenGL function pointer management
graphene https://github.com/ebassi/graphene/releases types for graphic libraries
libtiff https://download.osgeo.org/libtiff/ Tag Image File Format
zlib https://www.zlib.net/ Compression Library

Some of the transitive dependencies are listed separately below as they are direct dependencies of xpra itself. ie: lz4, libpng, etc..

Network Layer

See Network

| Project | Source Download Link | Purpose | Client or Server | Notes | |————————————————————————|———————————————————|——————————————————————-|———————|:—————————————————–| | lz4 | https://github.com/lz4/lz4/releases | packet compression | both | Strongly recommended | | aioquic | https://pypi.org/project/aioquic/ | low level network protocol | both | quic | | python-cryptography | https://pypi.python.org/pypi/cryptography | Encryption | both | | | pyopenssl | https://pypi.org/project/pyOpenSSL/ | Encryption | both | | | python-zeroconf | https://pypi.org/project/zeroconf/ | Multicast DNS session publishing and browsing | both | | | python-netifaces-plus | https://pypi.org/project/netifaces-plus/ | Multicast DNS session publishing | server | | | dbus-python | https://dbus.freedesktop.org/releases/dbus-python/ | desktop integration, server control interface | both | not applicable to MS Windows or Mac OSX | | openssl | https://www.openssl.org/source/ | SSL | both | | | paramiko | https://pypi.org/project/paramiko/ | ssh integration | both | | | sshpass | https://sourceforge.net/projects/sshpass/files/sshpass/ | non-interactive SSH password authentication | usually client | | | brotli | https://github.com/google/brotli/releases | HTML client compression | r15540 | | PySocks | https://github.com/Anorov/PySocks/releases | client | SOCKS proxy support | https://github.com/Xpra-org/xpra/issues/2105 |

Authentication

See authentication modules

| Project | Source Download Link | Purpose | Client or Server | Notes | |————————————————————|—————————————|———-|——————|:——————————————————| | python-gssapi | https://pypi.org/project/gssapi/ | GSSAPI | server | #1691 | | python-kerberos | https://pypi.org/project/kerberos/ | Kerberos | server | #1691 | | python-ldap | https://pypi.org/project/python-ldap/ | LDAP | server | #1691 | | python-ldap3 | https://pypi.org/project/ldap3/ | LDAP v3 | server | #1691 | | pyu2f | https://pypi.org/project/pyu2f/ | U2F | server | #1789 | | python-scramp | https://pypi.org/project/scramp/ | SCRAM | client + server | optional SCRAM authentication |

Python modules

| Project | Source Download Link | Notes | |———————————————————–|—————————————————————————————————————|:—————————————————–| | Cython | https://pypi.org/project/Cython/#files | build time: C extensions for Python | | python-ipaddress | https://pypi.org/project/ipaddress/#files | unspecified: r11859 | | python-idna | https://pypi.org/project/idna/#files | unspecified: r11860 | | python-decorator | https://pypi.org/project/decorator/#files | required by gssapi: r18781 | | pyasn1 | https://pypi.org/project/pyasn1/#files | unspecified: r5829 | | asn1crypto | https://pypi.org/project/asn1crypto/#files | required by python-cryptography: r17856 | | python-packaging | https://pypi.org/project/packaging/#files | required by python-cryptography: r15310 | | pyparsing | https://pypi.org/project/pyparsing/#files | required by python-cryptography: r15310 | | cffi | https://pypi.org/project/cffi/#files | required by python-cryptography: r11633 | | six | https://pypi.org/project/six/#files | required by python-cryptography: r11640 | | setuptools | https://pypi.org/project/setuptools/#files | unspecified: r5829 | | pycparser | https://pypi.org/project/pycparser/#files | required by cffi: r11634 | | pynacl | https://pypi.org/project/PyNaCl/#files | crypto library used by paramiko: r19967 | | bcrypt | https://pypi.org/project/bcrypt/#files | crypto library used by paramiko: r19965 | | pyopengl | https://pypi.python.org/pypi/PyOpenGL#files and
https://pypi.python.org/pypi/PyOpenGL-accelerate#files | client OpenGL accelerated rendering | | pycups | https://pypi.org/project/pycups/#files | Printing |

Encodings

See picture encodings

| Project | Source Download Link | Purpose | Client or Server | |————————————————————————————|—————————————————————————————————–|———————————————————————–|——————| | x264 | ftp://ftp.videolan.org/pub/x264/snapshots/ | h264 encoding | server | | openh264 | https://github.com/cisco/openh264/releases | h264 encoding and decoding | both | | vpx | http://downloads.webmproject.org/releases/webm/index.html | vp8 and vp9 codecs | both | | webp | http://downloads.webmproject.org/releases/webp/index.html | webp codec | both | | libpng | ftp://ftp.simplesystems.org/pub/libpng/png/src/libpng16/ | png encoding | both | | libjpeg-turbo | https://sourceforge.net/projects/libjpeg-turbo/files/ | jpeg encoding | both | | python-pillow | https://pypi.python.org/pypi/Pillow | png,jpeg,webp encoding and decoding, format conversion - Required | both | | libavif | https://github.com/AOMediaCodec/libavif/releases | avif encoding and decoding | both | | libyuv | https://chromium.googlesource.com/libyuv/libyuv/ | Colourspace Conversion | both | | pycuda | https://pypi.python.org/pypi/pycuda | NVENC | server | | cuda | https://developer.nvidia.com/cuda-toolkit | NVENC | server | | pyNVML | https://pypi.python.org/pypi/nvidia-ml-py/ | NVENC | server |

Audio

See audio forwarding

| Project | Source Download Link | Purpose | |————————————————|——————————————————–|———————-| | gstreamer | http://gstreamer.freedesktop.org/src/ | audio framework | | Ogg | http://downloads.xiph.org/releases/ogg/ | ogg container format | | opus | http://downloads.xiph.org/releases/opus/ | opus codec | | Flac | http://downloads.xiph.org/releases/flac/ | flac codec | | Vorbis | http://downloads.xiph.org/releases/vorbis/ | vorbis codec | | wavpack | http://www.wavpack.com/downloads.html | wavpack codec | | faac | https://github.com/knik0/faac/releases | aac encoder | | faad | https://github.com/knik0/faad2/releases | aac decoder | | lame | http://sourceforge.net/projects/lame/files/lame/ | MP3 encoder | | TwoLame | http://sourceforge.net/projects/twolame/files/twolame/ | MP3 encoder |

MacOS Dependency Graphs

These graphs were generated using jhbuild dot on MacOS. The MacOS builds include very low level build dependencies.

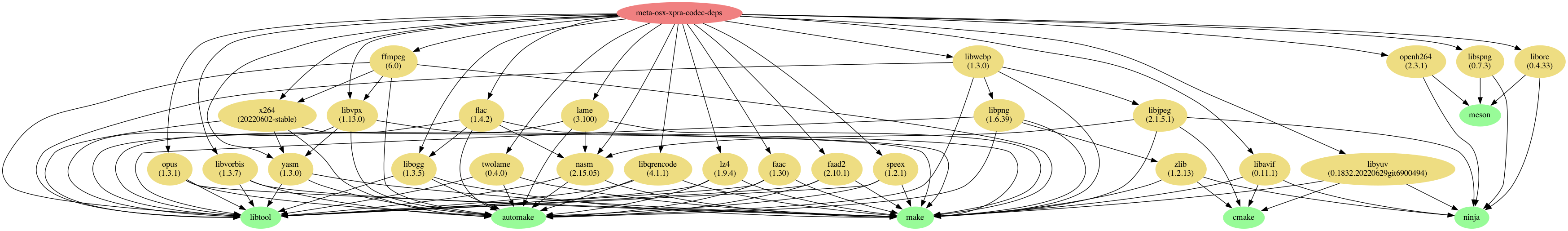

### Codecs Codec Dependencies

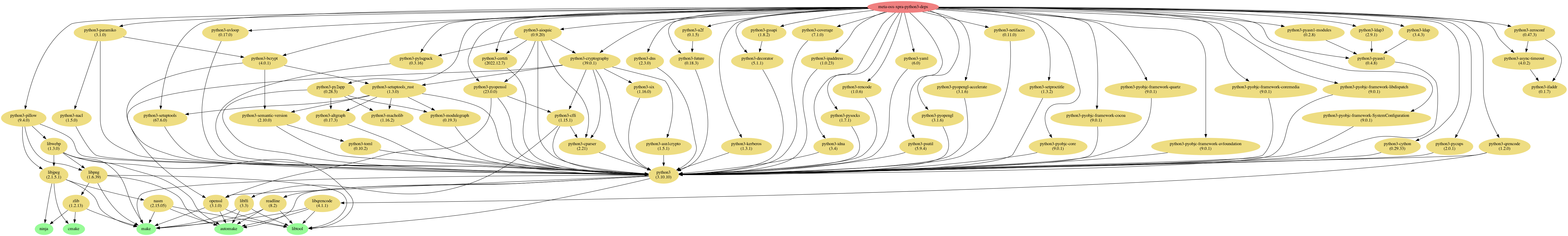

### Python3 Modules Python 3 Modules

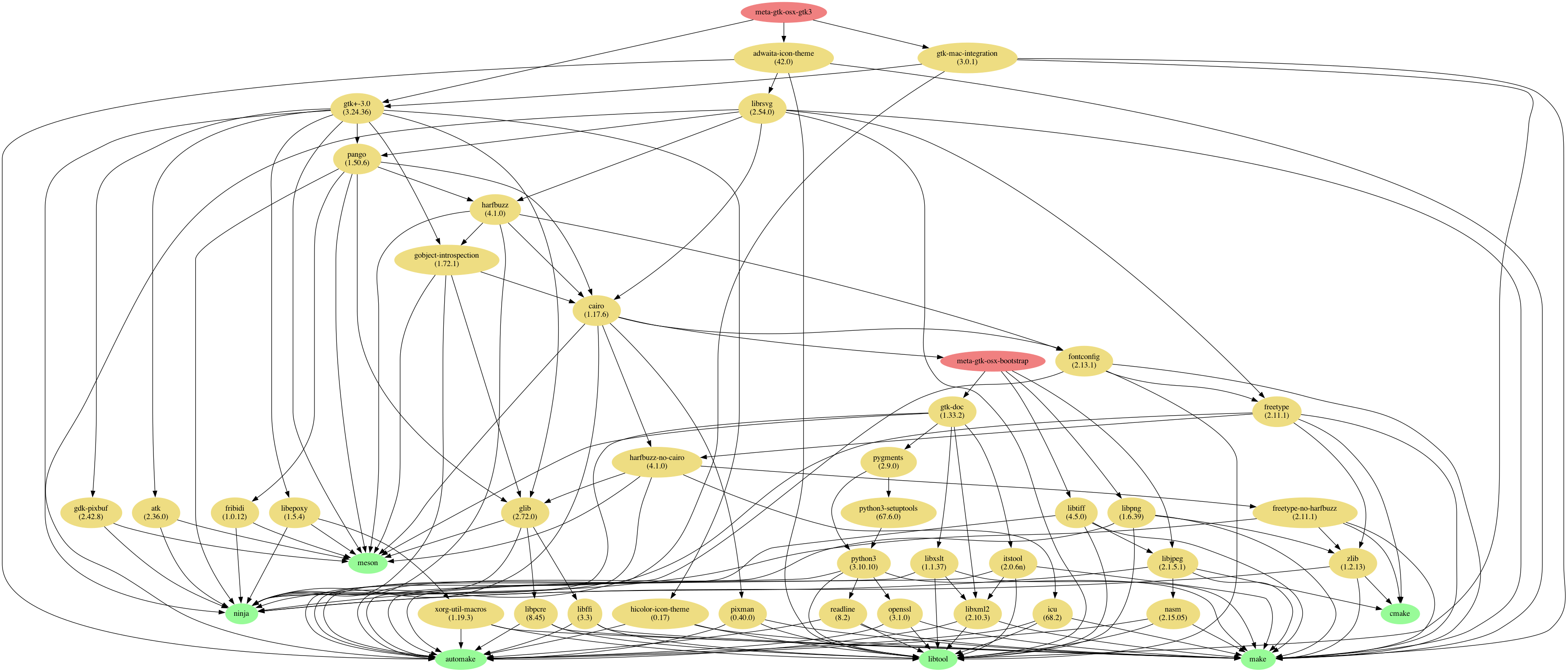

### GTK3 GTK 3

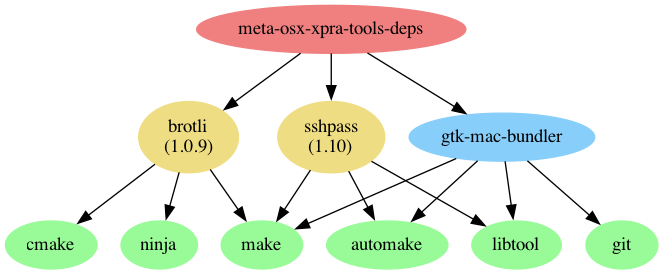

### Tools Tools

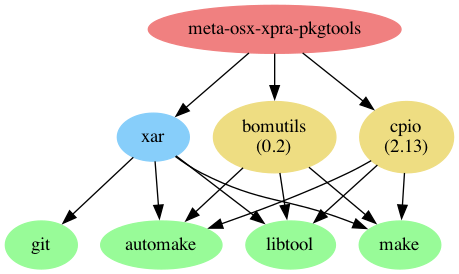

### MacOS Packaging Tools GTK 3

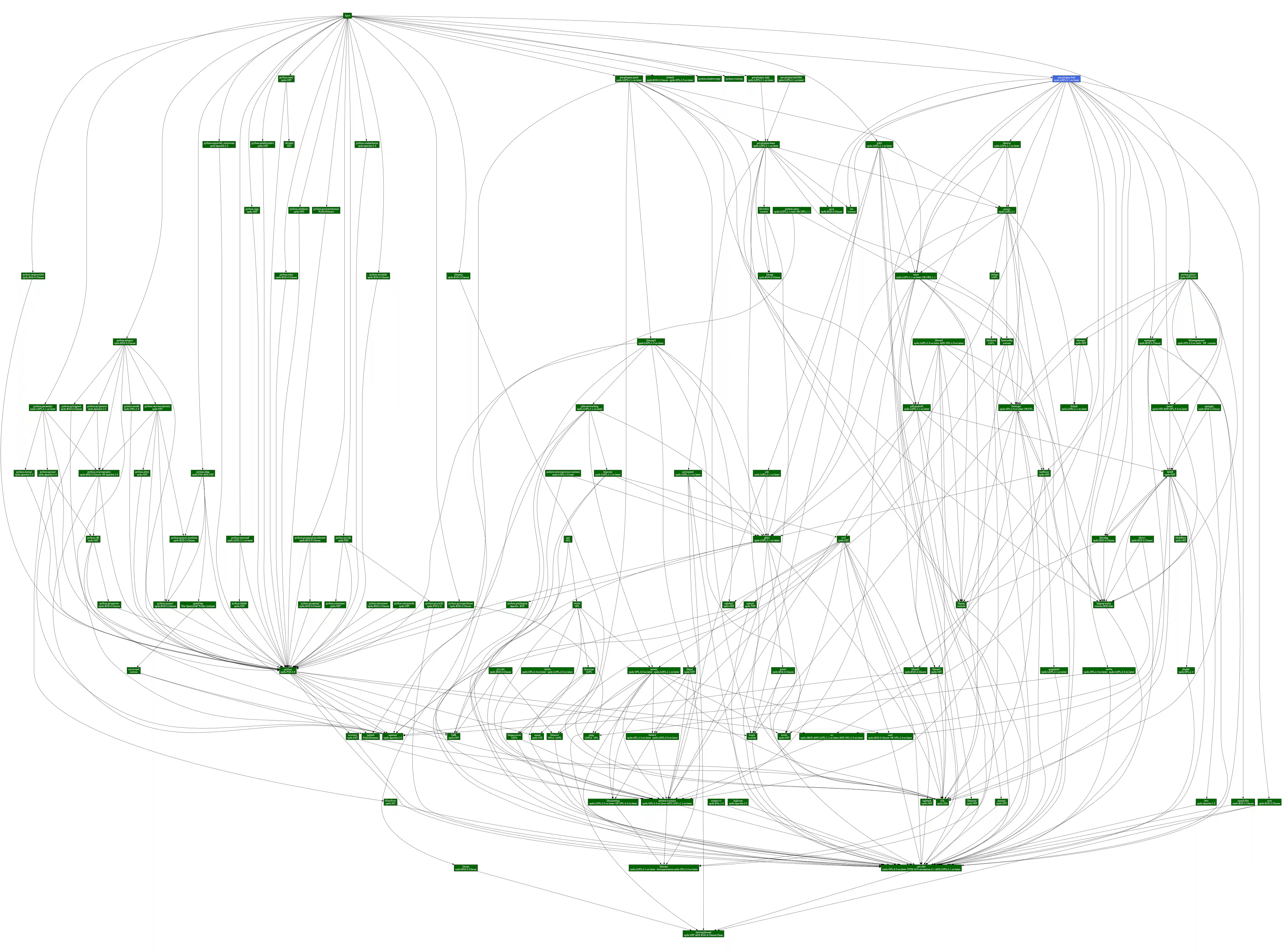

MS Windows Dependency Graph

This graph was generated from the SBOM for a “Light” build of xpra for MS Windows using:

  sbom2dot --input ./Xpra-Light-x86_64_6.4-r39169.json --output xpra.dot
  dot -Gsize=40,50\! -Gdpi=144  -Tpng -o win32-deps.png xpra.dot

MS Windows Dependencies
